Dongfeng-11(DF-11)
| Name | Dongfeng 11(DF-11/DF-11A/DF-11AZT) |
|---|---|
| Image |  |
| Country of origin | China (ARMT) |
| Variants | DF-11(CSS-7 Mod 1) DF-11A (CSS-7 Mod 2) DF-11AZT (Bunker buster) M-11 (Export varient of DF-11) DF-11B (upgraded varient) (speculated) |
| Type | Short range ballastic missile (SRBM) |
| Range | 300 km (DF-11) 700 km (DF-11A) 600 km (DF-11AZT) |
| Max altitude | Not known |
| Length | 7.5 m (DF-11) 8.5 m (DF-11A/DF-11AZT) |
| Diameter | 0.86 m |
| Fin span | 1.5 m (speculated) |
| Mass | 3800 kg (DF-11) 4200 kg (DF-11A/DF-11AZT) |
| Warhead | 800 kg (DF-11/DF-11AZT), 500 kg (DF-11A) Unitary high explosive, Submunitions (100x 5 kg), Nuclear, FAE and chemical warheads reported |
| Warhead yield | Nuclear (variable 2/10/20 kT) |
| Max Speed | Not known |
| Propulsion | Solid propellant |
| Engine | Single stage solid rocket motor |
| Guidance | Astro-inertial guidance system and Beidou GPS (For DF-11A/DF-11AZT) |

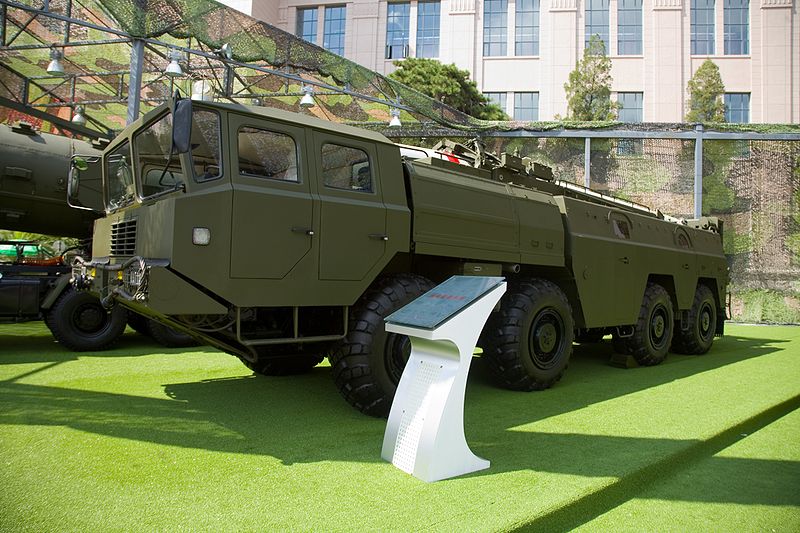

| Launch platform | Road-mobile transporter erector launcher |
| Service period | 1992-Present (DF-11) 1998-Present (DF-11A) |
| Accuracy | CEP: 500-600 m (DF-11) CEP: 200 m (INS)/20-30m (INS+GPS) (DF-11A) CEP: 50-100 m (DF-11AZT) |
| Description | The Dongfeng-11 (DF-11), DF-11A, and DF-11AZT are a series of Chinese short-range ballistic missiles (SRBMs), playing a significant role in China’s conventional and potentially nuclear strike capabilities. The DF-11, the initial variant, is a solid-fueled, single-stage missile with a range of approximately 300 km. It’s primarily designed for conventional strikes against targets in close proximity. The DF-11A is an improved version with a longer range, estimated at around 600 km, enhancing its reach and target coverage. It maintains the solid-fueled propulsion and single-stage design of its predecessor. The DF-11AZT is a further development, believed to be a more accurate variant of the DF-11A. It is speculated to incorporate improved guidance systems, enhancing its precision against point targets. All three missiles are road-mobile, increasing their survivability and making them difficult to locate and neutralize. This mobility contributes to their tactical flexibility. The DF-11 series is primarily intended for regional conflicts and potential use against targets in nearby countries or territories. These SRBMs are conventionally armed, carrying high-explosive or other conventional warheads. While their primary role is conventional, there is speculation about their potential to carry nuclear warheads, adding a strategic dimension. The solid-fueled nature of these missiles allows for rapid deployment and launch, providing a quick-reaction capability. |
| Website | NA |
Disclaimer: This information is based on publicly available sources and should be considered for general knowledge purposes only.
