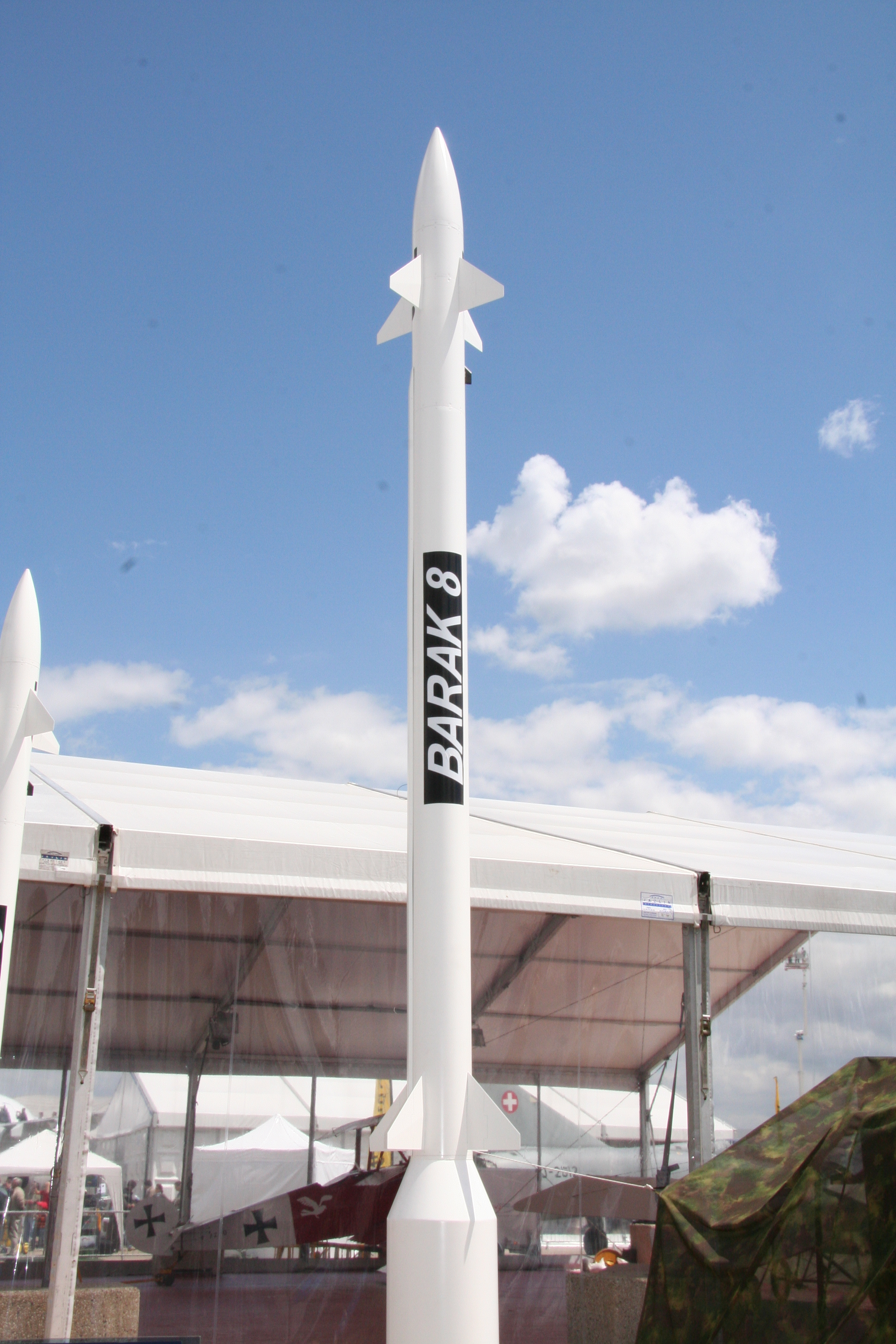

Name	Barak 8
Varient	LRSAM MRSAM Barak-8ER Barak MR (part of Barak MX) Barak LR (part of Barak MX)
Country of origin	Bharat (DRDO) & Isreal (IAI)
Type	Short to Medium range surface-to-air missile (SAM)
Range	70 km (MRSAM) 0.5-100 km (LRSAM) 35 km (Barak MR) 100 km (Barak LR) 0.5-150 km (Barak-8ER)
Flight ceiling	16-20 km 30 km (Barak-8ER)
Length	4.5 m
Diameter	0.225 m 0.54 m (Barak-8ER)
Fin span	0.94 m
Mass	276 kg
Flight Duration	Unknown
Warhead	60 kg
Warhead yield	Not known
Detonation mechanism	Hit to kill
Max Speed	Mach 2 (LRSAM) Mach 3 (MRSAM)
Propulsion	Solid rocket motor Solid booster (for Barak-8ER)
Engine	Smokeless dual pulsed rocket motor (Dual stage for Barak-8ER)
Guidance	2-way datalink w/ WCS, Active radar homing, Infrared Homing Guidance
Launch platform	8 cell VLS module (warship), 8 cell, double stacked land launcher
Service period	2017-Present
Description	The Barak-8, a highly advanced Surface-to-Air Missile (SAM) system, stands as a testament to international collaboration and cutting-edge air defense technology, primarily a joint venture between Israel and India. Designed to counter a diverse spectrum of airborne threats, the Barak-8 provides robust protection against aircraft, helicopters, anti-ship missiles, cruise missiles, and even unmanned aerial vehicles (UAVs). This versatile system employs a sophisticated combination of technologies to achieve its exceptional performance. At its core is a long-range intercept capability, engaging targets at distances exceeding 70 kilometers and potentially reaching up to 100 kilometers in extended-range versions. The missile itself boasts active radar homing, allowing for autonomous target acquisition and engagement even in complex and cluttered environments. Complementing the missile is an advanced multi-function surveillance and threat alert radar, providing 360-degree coverage and precise tracking of multiple targets simultaneously. This radar is crucial for early threat detection and effective fire control, maximizing the system’s engagement effectiveness. Jointly developed by Israel Aerospace Industries (IAI) and India’s Defence Research and Development Organisation (DRDO), with contributions from other defense entities, the Barak-8 exemplifies a successful partnership in advanced defense technology.
Website	https://bdl-india.in/

Disclaimer: This information is based on publicly available sources and should be considered for general knowledge purposes only.
