9M82M/9M82ME

Name 9M82M/9M82ME

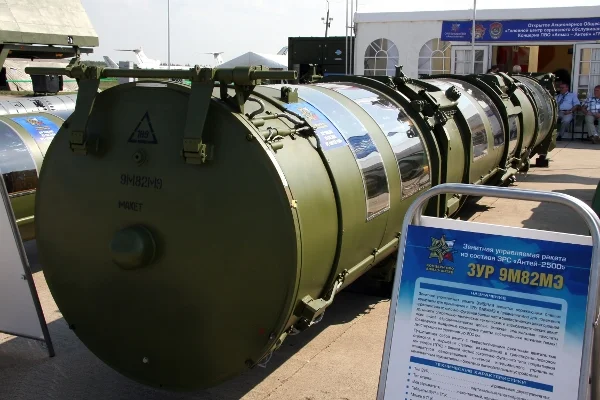

Image 9m82m
Varient 9M82M
9M82ME
Country of origin Russia
Type Long range surface-to-air missile (SAM)
Range 200-250 km
Altitude 30 km
Length 10.525 m
Diameter 0.85 m
Fin span 0.915 m
Mass 3300 kg
Flight Duration Not known
Warhead 150 kg, HE focused fragmentation with selectable in-flight proximity fuzing capability
Warhead yield Not known
Max Speed Mach 7.0-8.0 (Approx.)
Propulsion Solid rocket
Engine Solid rocket motor
Guidance Inertial with semi-active radar terminal homing seeker
Launch platform 50P6E transporter-erector-launcher
Service period 1983-Present
Description The 9M82M is a long-range, surface-to-air missile designed for the S-300V4 air defense system. It possesses a significant range, allowing it to engage a wide spectrum of aerial targets, including aircraft, drones, cruise missiles, and even ballistic missiles, at considerable distances. The 9M82M incorporates advanced guidance systems and a powerful propulsion system, enabling it to effectively intercept targets with high accuracy. It plays a crucial role in enhancing the S-300V4’s capabilities to counter modern aerial threats, making it a formidable component of the air defense system.
Website http://roe.ru/

Disclaimer: This information is based on publicly available sources and should be considered for general knowledge purposes only.
