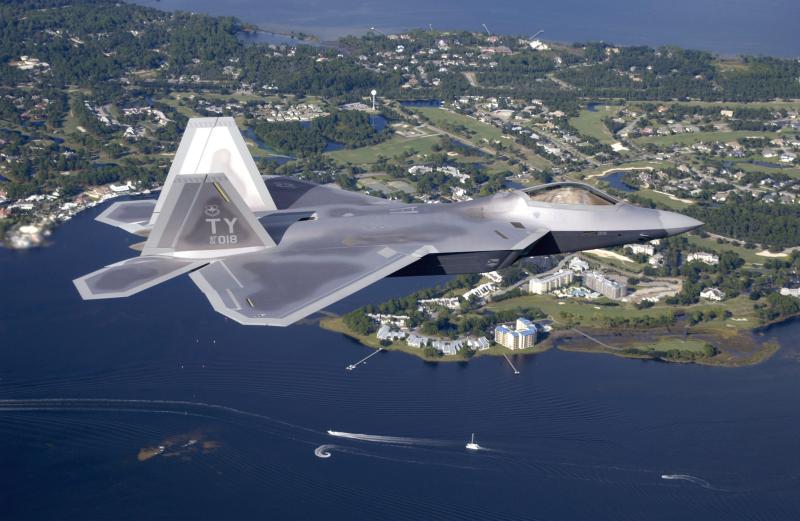

Name	F-22 Raptor
Country of origin	USA (Lockheed Martin)
Type	Air-dominance (5th Gen)
Varients	F-22A
Typical seats	One
Length	18.92 m
Fuselage width	Not known
Wingspan	13.56 m
Wing area	78.04 \(m^2\)
Wing sweep	42°
Aspect ratio	2.36
Payload	4500-5300 kg
Tail height	5.08 m
Empty weight	19700 kg
Gross weight	29410 kg
Maximum takeoff weight	38000 kg
Wing loading	377 kg/\(m^2\)
Combat range	850-1390 km
Maximum range	3220 km
Service ceiling	20000 m (65000 ft)
Max speed	Mach 2.25 (At altitude) Mach 1.21 (At sea level)
Supercruise	Mach 1.76
g limits	+9.0/-3.0
Fuel capacity	8200 kg (Inetrnal) 12000 kg (2× 600 U.S. gal tanks)
Engine	2 × Pratt & Whitney F119-PW-100 augmented turbofans
Thrust	2 × 116 kN (Military thrust) 2 × 156 kN (With afterburner)
Thrust/weight ratio	1.08
Takeoff runway length	Not known
Service period	2005-Present
Description	The F-22 Raptor is a fifth-generation, twin-engine, all-weather stealth tactical fighter aircraft developed by Lockheed Martin for the United States Air Force. It is considered one of the most advanced and capable fighter jets in the world, renowned for its combination of stealth technology, supercruise capability, advanced avionics, exceptional maneuverability, and powerful weapons payload. Primarily designed as an air superiority fighter, the F-22 can also perform ground attack, electronic warfare, and intelligence gathering missions. Its advanced stealth features make it extremely difficult for enemy radar to detect and track. The F-22’s powerful engines allow it to supercruise, meaning it can sustain supersonic flight without using afterburners. It carries a variety of weapons internally, including AIM-9 Sidewinder and AIM-120 AMRAAM air-to-air missiles, as well as Joint Direct Attack Munitions (JDAMs) for ground attack. The F-22’s sophisticated avionics and sensor fusion provide pilots with unparalleled situational awareness. Production of the F-22 was limited due to its high cost, making it a highly prized and exclusive asset within the USAF. It represents a pinnacle of modern fighter jet technology and plays a critical role in maintaining U.S. air dominance. The F-22’s advanced capabilities have influenced the development of other fifth-generation fighters worldwide.
Website	https://www.lockheedmartin.com/

Disclaimer: This information is based on publicly available sources and should be considered for general knowledge purposes only.
